КорзинаВкладыши шатуныне усиленные BMW N54B30/N55B30/S55B30 3.0L ACL 6B1584H-STD
 увеличить... |
| ||||||||||||
B1584H-STD
Specifications for STD size only
| Sizes | STD, .025, .25, .50 |
| Oil Clearance | |
| Half Type | Upper & lower |
| Material | F781 |
| Min. Std Shaft Size | 49,973 mm / 1.9674 in |
| Max. Std Shaft Size | 49,993 mm / 1.9682 in |
| Min. Std Tunnel Size | 53,6 mm / 2.1102 in |
| Max. Std Tunnel Size | 53,616 mm / 2.1109 in |
| Max Wall at Crown | 1,793 mm / 0.0706 in |
| Max Overall Length | 17,55 mm / 0.6909 in |
| Notes | |

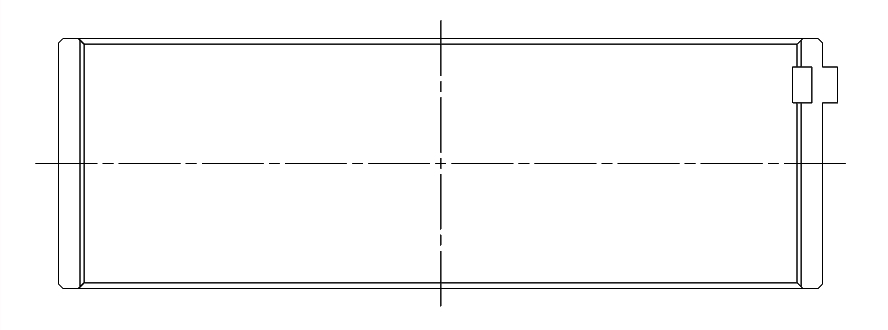

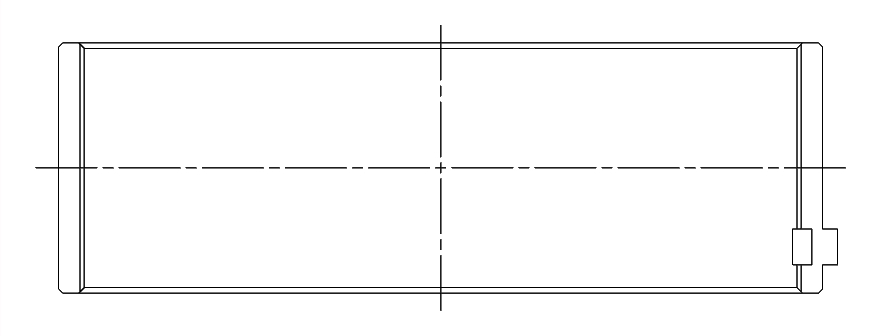

| Diagrams | 1584H-U  1584H-L  |
