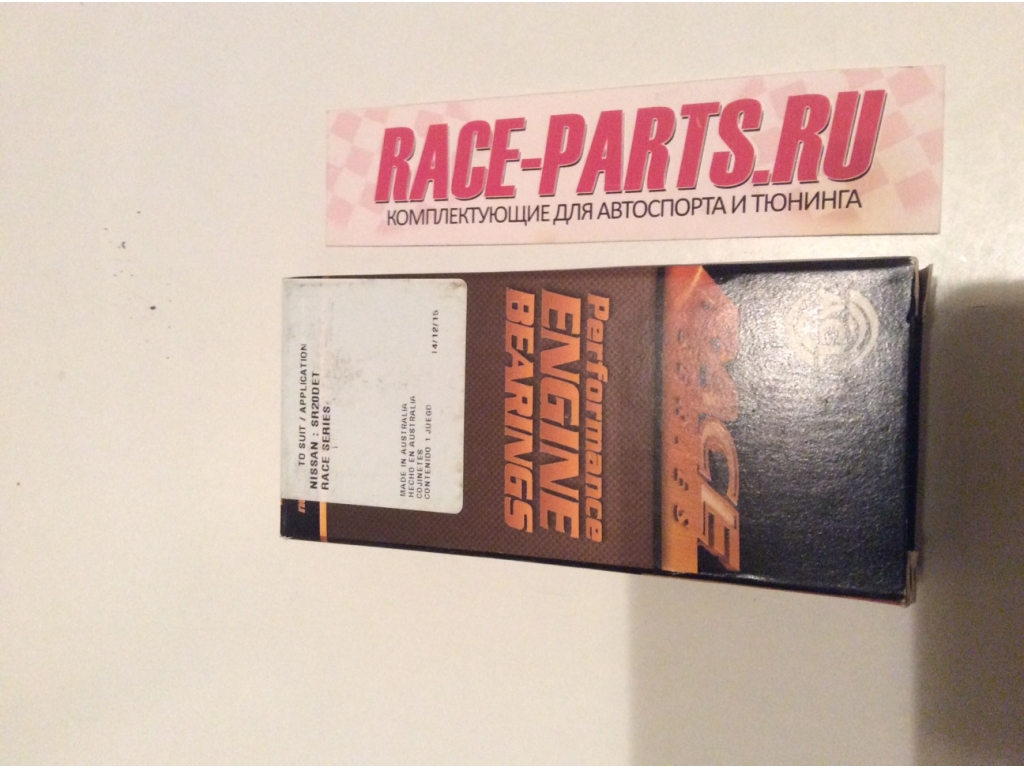

КорзинаВкладыши шатунные для Nissan Pulsar GTIR SR20DET ACL 4B2976H-STD
 увеличить... |
| ||||||||||||
| ENGINE BEARINGS | ||||
 | CON ROD BEARING SET | MAIN BEARING SET | ||
| Part# | Part# | |||
| 4B2976H | 4B2976HX | 5M2975H | 5M2975HX | |
| Sizes | STD, .025, .25 | STD | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra | Standard | + 0.001" Extra |
| Half Type | Identical Halves | Upper & Lower | ||
| Material | Tri-metal Hardened steel backs | Tri-Metal | ||
| Min Std Shaft Size | 1.888in / 47.956mm | 2.1636in / 54.956mm | ||
| Max Std Shaft Size | 1.8887in / 47.974mm | 2.1646in / 54.980mm | ||
| Min Std Tunnel Size | 2.0079in / 51.000mm | 2.3206in / 58.944mm | ||
| Max Std Tunnel Size | 2.0084in / 51.013mm | 2.3216in / 58.968mm | ||
| Max Wall at Crown | 0.0592in / 1.503mm | 0.0587in / 1.49mm | 0.0780in / 1.980mm | 0.0774in /1.967 mm |
| Max Overall Length | 0.752in / 19.10mm | 0.752in / 19.10mm | ||
| Notes | Suits GTiR engines only. | Suits GTiR engines only. | ||
Diagram |  |  | ||
| THRUSTWASHER SET | ||||
| Part# | 1T2964 | Material | Copper Lead | |
| Sizes | STD | Notes | Identical Halves | |
