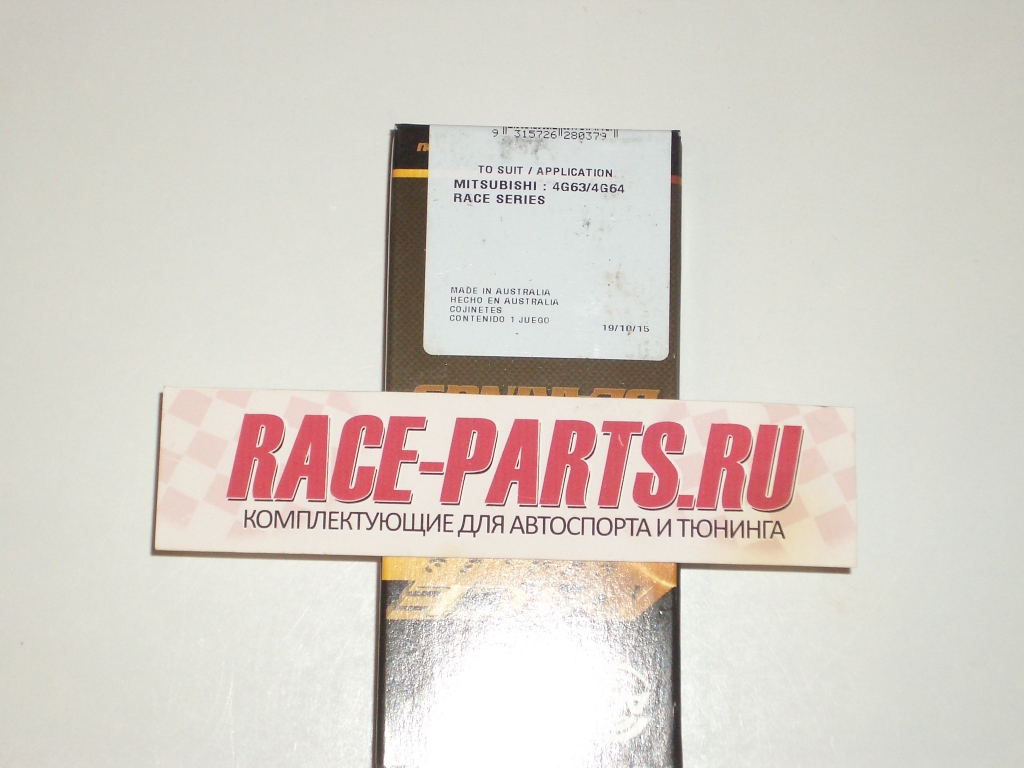

КорзинаВкладыши шатунные для Mitsubishi 4G63/4G63T/4G64 (92>) ACL 4B1185H-STD
 увеличить... |
| ||||||||||||
| ENGINE BEARINGS | ||||
 | CON ROD BEARING SET | MAIN BEARING SET | ||
| Part# | Part# | |||
| 4B1185H | 4B1185HX | 5M1219H | 5M1219HX | |
| Sizes | STD,.025, .25 | STD | STD,.025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | Upper & Lower | ||
| Material | Tri-metal Hardened steel backs | Tri-Metal | ||
| Min Std Shaft Size | 1.7709in / 44.981mm | 2.2435in / 56.985mm | ||
| Max Std Shaft Size | 1.7715in / 44.996mm | 2.2441in / 57.000mm | ||
| Min Std Tunnel Size | 1.8897in / 47.998mm | 2.4016in / 61.000mm | ||
| Max Std Tunnel Size | 1.8905in / 48.019mm | 2.4024in / 61.021mm | ||
| Max Wall at Crown | 0.0586in / 1.488mm | 0.0581in / 1.475mm | 0.0783in / 1.990mm | 0.0778in / 1.977mm |
| Max Overall Length | 0.8307in / 21.10mm | 0.8268in / 21.00mm | ||
| Notes | For engines equipped with thrust washers | |||
Diagram |  |  | ||
