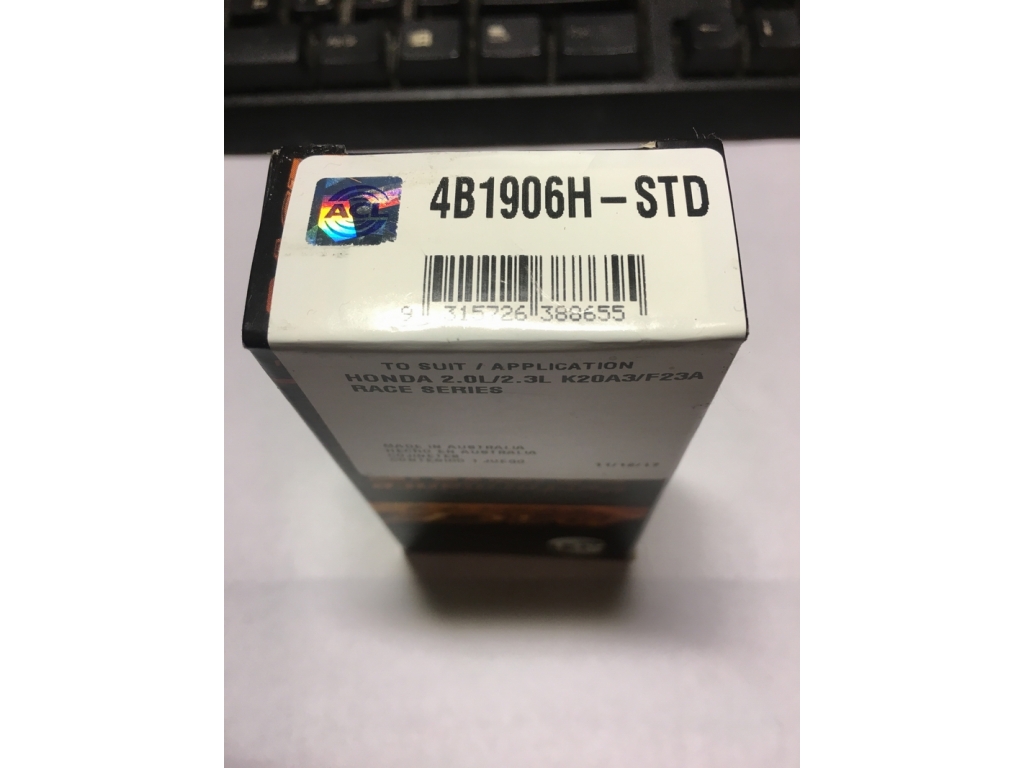

КорзинаВкладыши шатунные ACL 4B1906H-STD Honda K20a3 F23a
 увеличить... |
| ||||||||||||
| ENGINE BEARINGS | ||||
 | CON ROD BEARING SET | MAIN BEARING SET | ||
| Part# | Part# | |||
| 4B1906H | 4B1906HX | 5M1959H | 5M1959HX | |
| Sizes | STD, 025, .25, .50 | STD | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra | Standard | + 0.001" Extra |
| Half Type | Identical Halves | Upper & Lower | ||
| Material | Tri-metal Hardened steel backs | Tri-Metal | ||
| Min Std Shaft Size | 1.7707" / 44.976mm | 2.1646" / 54.980mm | ||
| Max Std Shaft Size | 1.7717" / 45.000mm | 2.1654" / 55.000mm | ||
| Min Std Tunnel Size | 1.8898" / 48.000mm | 2.3228" / 59.000mm | ||
| Max Std Tunnel Size | 1.8907" / 48.024mm | 2.3236" / 59.020mm | ||
| Max Wall at Crown | 0.0591" / 1.502mm | 0.0586" / 1.489mm | 0.0790" / 2.007mm | 0.0785" /1.994mm |
| Max Overall Length | 0.610" / 15.50mm | 0.7874" / 20.00mm | ||
| Notes | ||||
Diagram |  |  | ||
