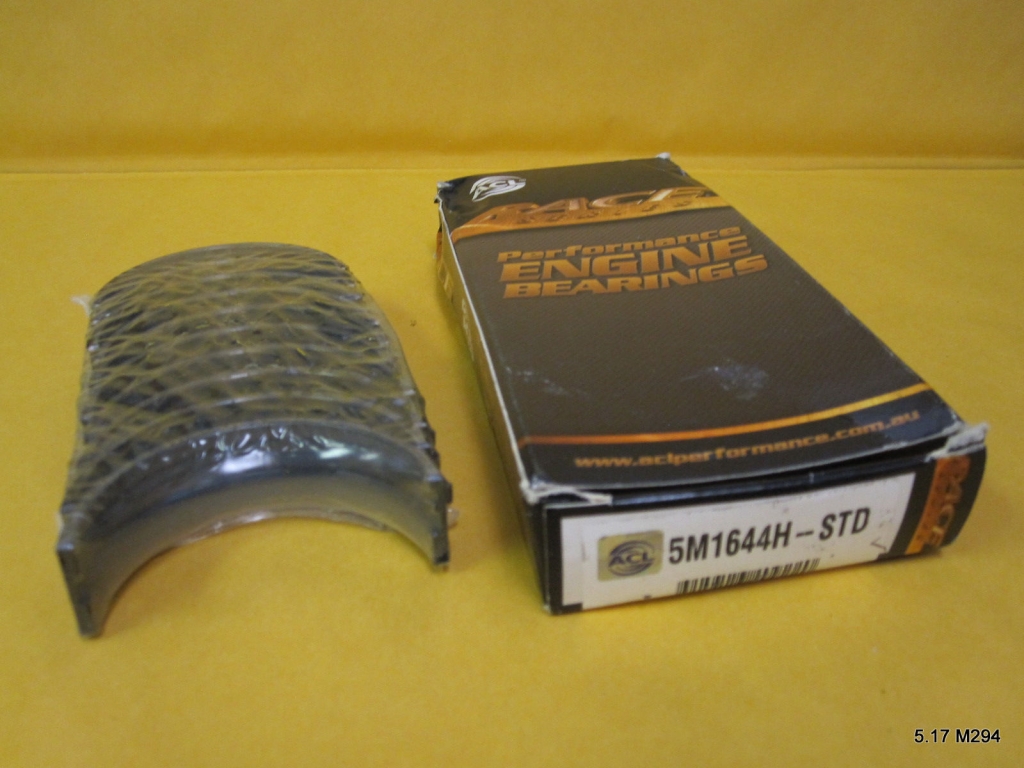

КорзинаВкладыши коренные ремонтные ACL 5M1644H-0.25 VW Audi 1.6L 1.8L 2.0L Turbo and 20V (1983-2003)
 увеличить... |
| ||||||||||||
VW 1595cc,1781cc (incl.Turbo),1984cc,1998cc Polo, Caddy, Golf, Jetta, Passat (1983-2003)
| ENGINE BEARINGS | ||||
 | CON ROD BEARING SET | MAIN BEARING SET | ||
| Part# | Part# | |||
| 4B1606H | 4B1606HX | 5M1644H | 5M1644HX | |
| Sizes | STD, .025, .25, .50 | STD | STD, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra | Standard | + 0.001" Extra |
| Half Type | Identical Halves | Upper & Lower | ||
| Material | Tri-metal Hardened steel backs | Tri-metal | ||
| Min Std Shaft Size | 1.88027in /47.758mm | 2.1243in / 53.958mm | ||
| Max Std Shaft Size | 1.8810in /47.778mm | 2.1251in / 53.978mm | ||
| Min Std Tunnel Size | 1.9921in /50.6mm | 2.3228in / 59.000mm | ||
| Max Std Tunnel Size | 1.9929in /50.619mm | 2.3236in / 59.019mm | ||
| Max Wall at Crown | 0.0553in / 1.405mm | 0.0548in /1.392mm | 0.0985in / 2.502mm | 0.0980in / 2.489mm |
| Max Overall Length | 0.748in /19.00mm | 0.728in / 18.49mm | ||
| Notes | contains one oil hole | Set contains 6 x 1648H and 4 x 1644Hh shells. Use 1648H shell in #4 position as upper and lower. | ||
Diagram |  |
| ||
