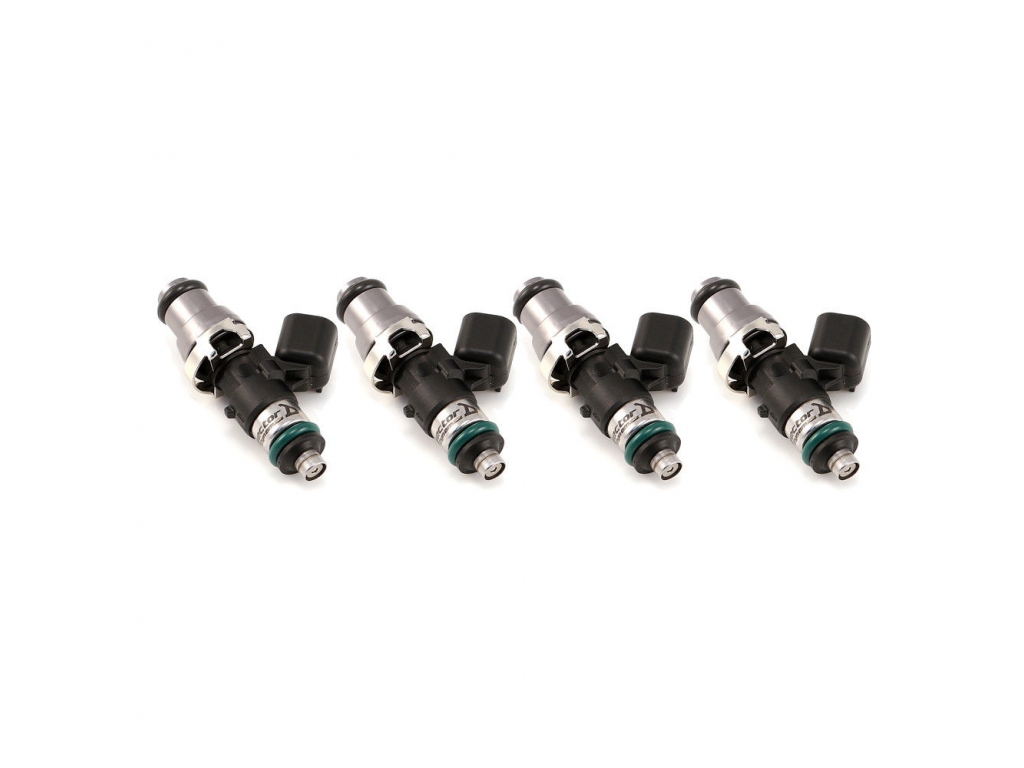

Injector Dynamics ID1700X for Mitsubishi Evo 10 / X - 14mm Set of 4

Injector Dynamics ID1700X for Mitsubishi Evo 10 / X - 14mm Set of 4

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

Application Notes

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.

Basic Specifications

Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)

Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)

Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.

Electrical Connector – USCAR

Fitment Dimensional Drawings

Most applications fall into one of four standard fitments consisting of two standard lengths, (48mm or 60mm) and 2 standard fuel rail bores (11mm, or 14mm) The 3D models pictured below give the relevant dimensions of these standard fitments.
