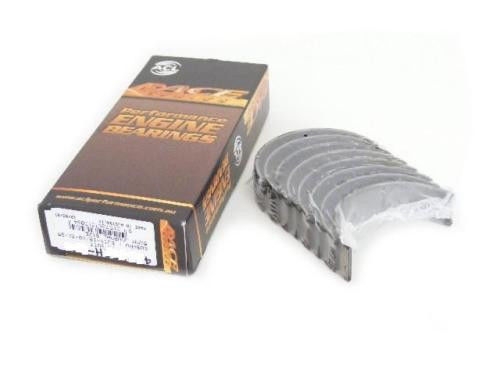

КорзинаВкладыши шатунные ACL 4B1972H-STD для Honda K20 K20a K20a2 K20z K20z1 K24 K24a2
 увеличить... |
| ||||||||||||
| ENGINE BEARINGS | ||||
 | CON ROD BEARING SET | MAIN BEARING SET | ||
| Part# | Part# | |||
| 4B1972H | 4B1972HX | 5M1959H | 5M1959HX | |
| Sizes | STD, 025, .25 | STD | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra | Standard | + 0.001" Extra |
| Half Type | Identical Halves | Upper & Lower | ||
| Material | Tri-metal Hardened steel backs | Tri-Metal | ||
| Min Std Shaft Size | 1.8890" / 47.980mm | 2.1646" / 54.980mm | ||
| Max Std Shaft Size | 1.8898" / 48.000mm | 2.1654" / 55.000mm | ||
| Min Std Tunnel Size | 2.0080" / 51.004mm | 2.3228" / 59.000mm | ||
| Max Std Tunnel Size | 2.0088" / 51.024mm | 2.3236" / 59.020mm | ||
| Max Wall at Crown | 0.0591" / 1.500mm | 0.0585" / 1.487mm | 0.0790" / 2.007mm | 0.0785"/1.994mm |
| Max Overall Length | 0.606" / 15.40mm | 0.787" / 20.00mm | ||
| Notes | ||||
Diagram |  |  | ||
