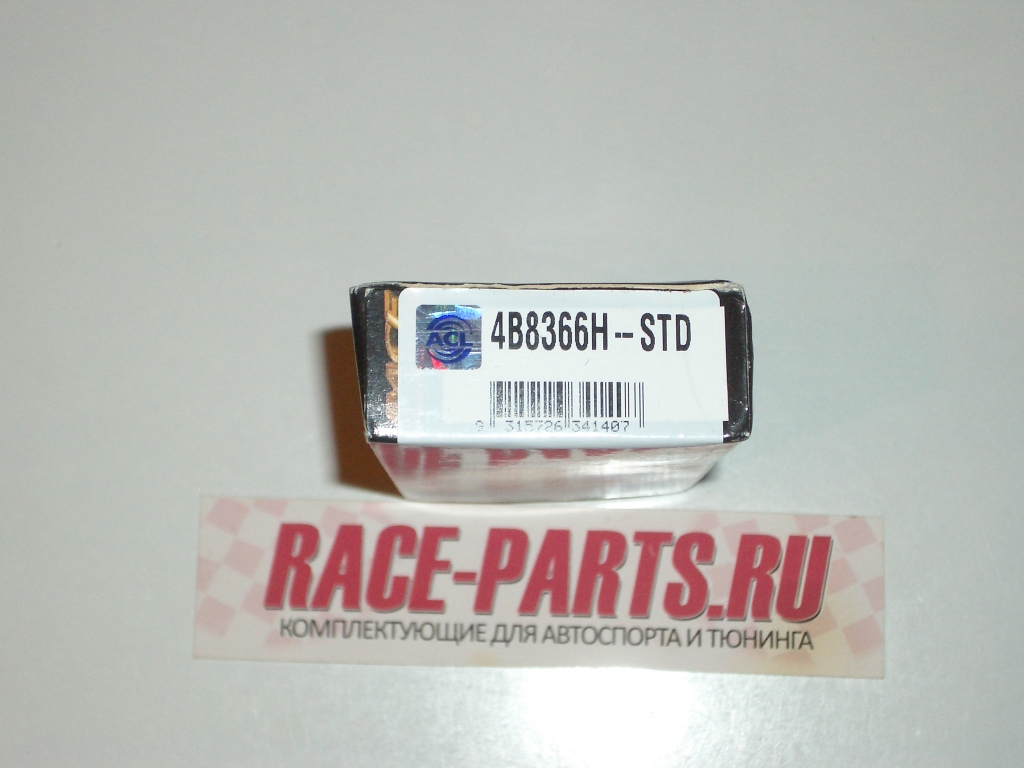

КорзинаВкладыши шатунные 4B8366H-STD ACL RACE Toyota 3SGTE,3SGE
 увеличить... |
| ||||||||||||
| ENGINE BEARINGS | ||||
 | CON ROD BEARING SET | MAIN BEARING SET | ||
| Part# | Part# | |||
| 4B8366H | 4B8366HX | 5M8361H | 5M8361HX | |
| Sizes | STD, .025, .25, .50 | STD | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra | Standard | + 0.001" Extra |
| Half Type | Identical Halves | Upper & Lower | ||
| Material | Tri-metal Hardened steel backs | Tri-Metal | ||
| Min Std Shaft Size | 1.8892in / 47.985mm | 2.1648in / 54.985mm | ||
| Max Std Shaft Size | 1.8898in / 48.000mm | 2.1654in / 55.000mm | ||
| Min Std Tunnel Size | 2.008in / 51.004mm | 2.3236in / 59.020mm | ||
| Max Std Tunnel Size | 2.0088in / 51.024mm | 2.3243in / 59.038mm | ||
| Max Wall at Crown | 0.0586in / 1.488mm | 0.0581in / 1.475mm | 0.0787in / 2.000mm | 0.0782in / 1.987mm |
| Max Overall Length | 0.8386in / 21.30mm | 0.7559in / 19.20mm (8361H/HX) 0.9055in / 23.00mm (8362H/HX) | ||
